Smart 3D Inspection for Semiconductor

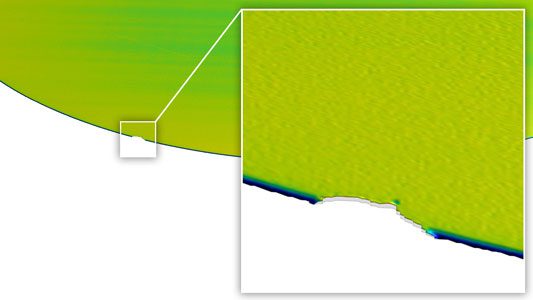

Wafer Inspection (Dimensioning, Sorting, Defect Detection) After laser dicing and/or scribing is complete, Gocator® 3D Line Confocal Sensors are used to measure the accuracy of the groove placement, groove depth, and kerf width of the wafer scribing to prevent defects such as die chipping. This allows for more usable die per wafer, and ensures maximum quality and processing speeds for the highest production throughput. Wafer Sorting The industry’s first smart 3D line confocal sensors LEARN MORE Generates Three Data Types Gocator® line confocal sensors generate 3D topography (for 3D surface geometry), 3D tomography (for multi-layer 3D geometry), and 2D intensity data simultaneously, allowing these sensors to handle virtually any material type including multi-layered, transparent, curved, mixed material, and more. Gocator® 3D Line Confocal Sensors are used to scan and inspect wafer size, thickness, and flatness, in addition to providing high-precision defect detection of die chips and other surface imperfections. Gocator® 5500 Fast Scan Rates Gocator® 5500 sensors feature a custom high-speed imager and high-performance electronics to deliver metrology-grade inspection at over 10 kHz with PC acceleration. BGA/PGA Inspection (Position, Height, Radius) Gocator 3D line confocal sensors are used for inspection of BGA and PGA position, height, and radius during assembly and test IC. The industry’s first smart 3D line confocal sensors LEARN MORE Gocator® 5500 Series BGA (Ball Grid Array) Inspection Gocator® 3D Line Confocal Sensors can accurately measure ball height, ball position, and other dimensional information of the ball with a diameter of less than 50µm. PGA (Pin Grid Array) Inspection Gocator® 3D Line Confocal Sensors can accurately inspect the height and position of the PGA pins to ensure that there are no poor contacts created during the subsequent insertion and removal process, and to prevent defects such as pin damage caused by positional errors. Solder Joint Inspection Gocator® 3D Line Confocal Sensors can accurately measure and inspect the flatness and height of joint position before welding, and minimize the breakage of each solder joint after subsequent welding is completed. Silver Epoxy Inspection (Dye Process) Gocator® 3D Line Confocal Sensors are used to accurately measure the surface area of coated silver epoxy in each lead frame area, as well as the height (i.e. thickness) of the epoxy glue bead. Built-in Measurement Tools Onboard tools allow users to take area and volume measurements without having to invest in 3rd party vision software or develop custom tool sets on their own. Gocator® 5500 series LEARN MORE Scans Any Material Type 3D imaging is contrast-invariant and can therefore be used to scan a range of adhesive material types from opaque to translucent and transparent. In comparison, 2D solutions cannot provide shape measurements because they only generate contrast-based data. The industry’s first smart 3D line confocal sensors 3D Shape Data Gocator sensors generate the essential 3D shape data required for precision volumetric measurement and shape-based defect detection (e.g. bubbles, thickness) on the glue bead. Wire Bonding Defect Detection Gocator® 3D Line Confocal Sensors are used for high accuracy measurement of the arch-height and position of the wire (gold, copper, or aluminum). Web-Based User Interface Features such as the web-browser driven point-and-click environment for rapid configuration, built-in measurement tools and rich I/O for communicating results make it easy for factory technicians to get the results they need. Gocator line confocal sensors provide excellent performance on highly reflective, mirror-like, transparent, and multilayered surfaces. High Performance on Challenging Surfaces Defect Detection Gocator line confocal sensors also detect defects in the wire itself, such as breaks or bends. Gocator® 5500 series LEARN MORE The industry’s first smart 3D line confocal sensors Ball-Bumping Dimensional Measurement Gocator® 3D Line Confocal Sensors accurately capture the diameter and height (thickness) of the ball down to 2.5 microns. Gocator® 5500 LEARN MORE Gocator line confocal sensors are also used to inspect the coplanarity between all ball bumps––detecting any height variation that can cause uneven distribution of force, die fractures, and open circuits. Coplanarity Measurement The industry’s first smart 3D line confocal sensors High-Density Data Generation Gocator® line confocal sensors generate up to 28 million 3D and 2D data points per second per surface. High Resolution and Repeatability Gocator line confocal sensors achieve X resolutions up to to 2.1 µm (X) and Z-repeatability up to 0.05 µm for highly precise and accurate measurements. Final Packaging Measurement and Inspection Gocator® 3D Line Confocal Sensors can capture the length, width, and height of the chip after final packaging. Gocator® 5500 series LEARN MORE These sensors can also output high-resolution 2D grayscale images to detect defects such as pits and scratches. 2D Intensity Output The industry’s first smart 3D line confocal sensors FactorySmart® Sensors Gocator 3D smart sensors connect seamlessly with networks to communicate results, display diagnostics and statistics over web browsers, access upgrades over the Internet, and interface with factory equipment. 1250x500 Semiconductor SiliconWaferInspection TypeOfScanData G5500 Product Family Comp transparent magnifying glass icon white 1 Wafer Defect Zoom 5500 LP icons presentation High Speed Scanning BGA Inspection G5 Comp 1250x500 Semiconductor BGAInspection BGA Closeup BGA FullZoom 1250x500 Semiconductor SilverAdhesive 2.measurement tools all 1 BGA 3D Data FocalSpec LP Icons Wide Variety of Challenging Materials 1250x500 Semiconductor WireBondInspection Web Based Interface Sensor Wire Defect Wire Bond Scan 1250x500 Semiconductor BallBumpDimensioning BallBump Sensor Zoom 2510 Sim Coplanarity 5500 LP icons High Resolution Imaging new 1250x500 Semiconductor FinalPackageInspection FactorySmartAI Icons Superhuman Performance Intensity comparison

3D Smart Sensors for Semiconductor Manufacturing Inspection

Semiconductor fabrication is a multi-step manufacturing sequence made up of mechanical, photolithographic, and chemical processing steps, during which electronic circuits are gradually created on a wafer made of pure semiconducting material. Silicon is almost always used, but various compound semiconductors are chosen for specialized applications.

Gocator® 3D Line Confocal Sensors deliver precision inline 3D scanning and inspection at various stages of this fabrication process for maximum product quality and optimal production throughput.

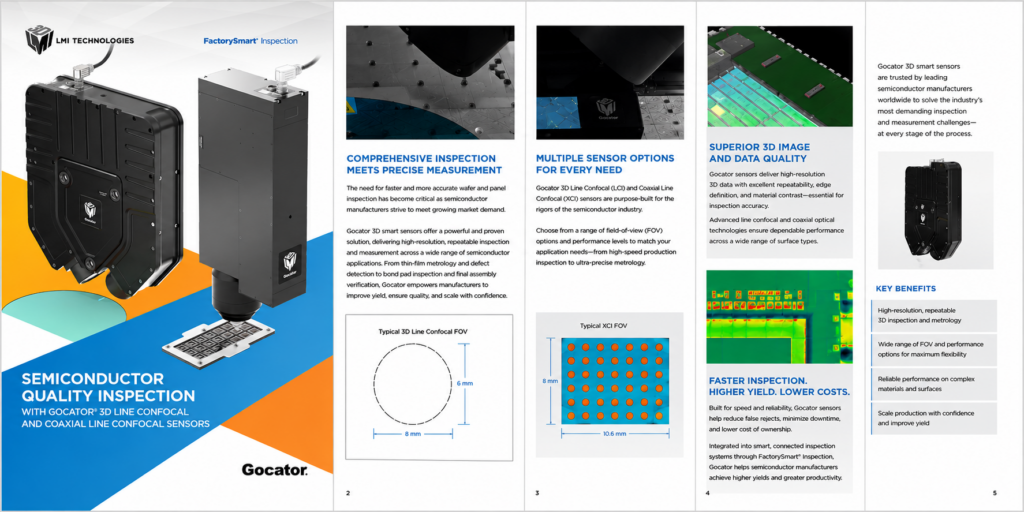

Semicondcutor Inspection Brochure Gocator 4000 Gocator 5000

The Gocator 4000 Series introduces coaxial line confocal sensor technology to complement LMI’s existing Line Confocal product portfolio. These sensors provide high-speed, high-resolution, versatile and shadow-free 3D inline inspection performance with outstanding angular range (Max Slope Angle up to +/- 85 degrees) for manufacturing applications in Semiconductor, Consumer Electronics, EV Battery, and many more.

Gocator Logo 5500 Series

Recommended Solution

The Gocator® 5500 series adds patented line confocal imaging (LCI) technology to the Gocator® family of 3D smart sensors. These line confocal sensors deliver high speed, wide coverage 2K line scanning with simultaneous generation of 3D topography, 3D tomography, and 2D intensity data.

This allows Gocator® 5500s to scan practically any material type––including multi-layered, transparent/translucent, curved edge, shiny/specular, high-contrast textured, mixed, and many more––with submicron precision, and at a level of quality and speed that outperforms competing confocal technologies.

Gocator Logo 2500 Series

Recommended Solution

Gocator 2500 3D smart sensors are the fastest, most compact, and advanced Gocator laser line profilers to date. Designed for high performance small parts inspection, these

line profilers achieve inspection rates up to 10 kHz (including scan, measure, and control) and high X resolutions down to 8 microns. A custom 2MP high speed imager, optimized optical design, and blue laser light generate excellent data with highly repeatable results on shiny and other challenging surfaces.
