Smart Cameras
Gocator 2D Smart Cameras deliver a complete solution for industrial 2D measurement and inspection. Built on LMI’s proven smart sensor platform, these cameras combine high-resolution imaging, advanced lighting control, deep edge AI (deep learning-powered intelligence executed on-device), and intuitive GoPxL™ software—enabling precise, flexible inspection across automotive, medical device, electronics, and factory automation applications. Explore Gocator 2D.
- 5 MP or 12 MP mono or color global shutter CMOS for fast, low-noise imaging
- NVIDIA Jetson Orin NX GPU module for real-time processing and on-device AI training and inference
- Traditional and AI toolset including alignment, edge, blob, barcode, OCR, anomaly detection, and classification
- On-device AI training using real production data with no cloud dependency
- Industrial I/O support including Ethernet/IP, PROFINET, Modbus, and digital outputs
- Flexible lighting integration with high-power ring and bar lights
- Rugged IP67 housing with C-mount lens support for adaptable field-of-view configurations
QUICK SPECS
| Model |
|
| ||||
|---|---|---|---|---|---|---|
| Image Type |
|
| ||||
| Resolution Pixels |
5 MP (2464 × 2064)
|
12 MP (4128 × 3008)
| ||||
| Frames per Second (burst, no processing) |
84 fps
|
41 fps
| ||||
| Sensor Type |
1/1.8" CMOS, global shutter
|
1/1.1" CMOS, global shutter
| ||||
| Sensor Properties |
8.9 mm diagonal, 2.74 × 2.74 µm
|
14.0 mm diagonal, 2.74 × 2.74 µm
| ||||
| Lens Mount |
C-mount
| |||||
| Non-volatile Memory |
88 GB
| 17 | ||||
| Application Memory |
15 GB
| |||||
| Indicator LEDs |
Power and network LED
| |||||
| Light Control |
External lights using I/O connector
| |||||
| Network |
Gigabit Ethernet (10/100/1000 Mbps)
| |||||
| Alignment and Status I/O |
2 x input, 2 x output (opto-isolated)
| |||||
| Trigger and Strobe |
1 x Trigger, 1 x Strobe
| |||||
| Industrial M12 Connectors |
Power, I/O, Ethernet
| |||||
| Protection |
IP67 with C-mount lens cover
| |||||
| Power |
+24 VDC (camera only, 48 W; with RMX140 light, 168 W)
| |||||

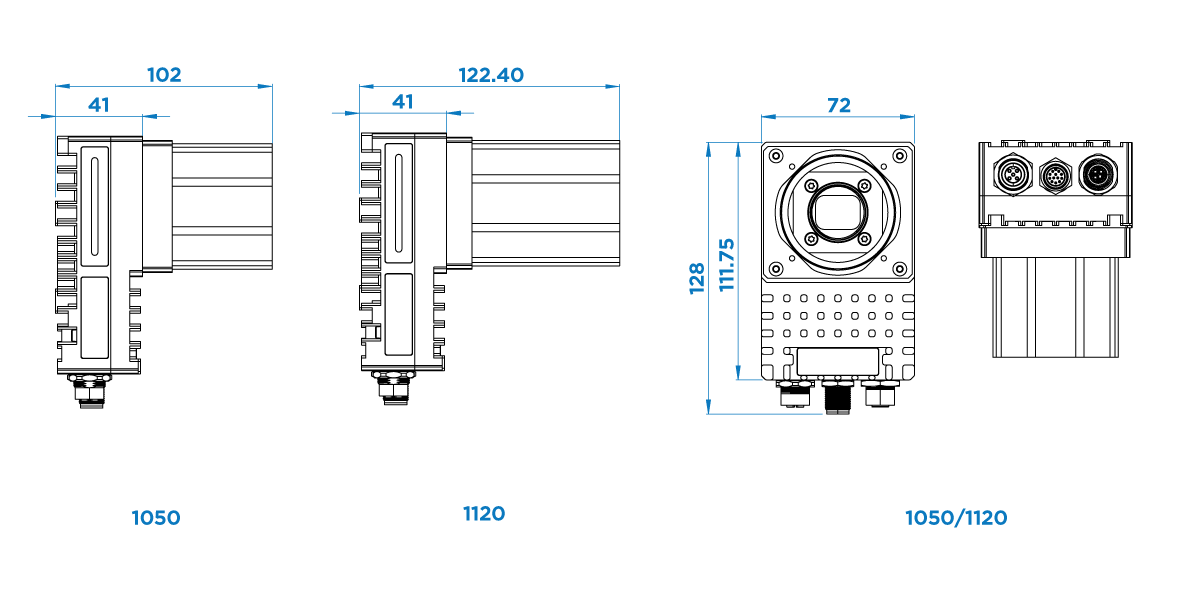

| Dimensions (L × W × H) |
49.3 × 72 × 111.75 mm
| |||||
| Dimension with lens cover (L × W × H) |
102 × 72 × 111.75 mm
|
122.4 × 72 × 111.75 mm
| ||||
| Weight (no lens / cover) |
650 g
|
650 g
| ||||
| Lens Cover Weight |
160 g
|
202 g
|
Scanning Software: Browser-based GUI and open source SDK for configuration and real-time 2D visualization. Open source SDK, native drivers, and industrial protocols for integration with user applications, third-party image processing applications, robots, and PLCs.
Factory Communication Protocols:
Choose from a variety of application scenarios, then use an exact duplicate of the
Gocator interface. Perform measurements on pre-recorded data from a variety of
scanned components—all in a web browser-based "virtual sensor" environment. Right
from your desktop. Without the need for a physical sensor.
You can use Emulator via download, or for sample testing of your part.
