6300 SERIES
Smart 3D Line Profile Sensors
The Gocator 6300 Series is the latest evolution of LMI Technologies’ industry-leading smart 3D laser line profiler family. These powerhouse sensors combine the higher speed and precision of previous-generation LMI laser profilers with a re-engineered optical design for ultimate 2D/3D scanning performance.
- Over 6500 Points per Profile for Precision 2D/3D Measurement and Inspection
- X Profile Data Interval Down to < 2.1 Microns (At 13.4 Millimeters FOV)
- Z-repeatability down to 0.15 microns
- Scan rate up to > 1800 Hz full-frame (FOV/MR)
- Field of View Up to 31 mm (at < 4.3 microns X Profile Data Interval)
QUICK SPECS
| Model | 6310 | 6320 |
|---|---|---|
| Data Points / Profile * | > 6500 | > 6500 |
| Scan Rate (Full FOV/MR) (Hz) ** | > 1700 | > 1800 |
| X Profile Data Interval (µm) * | < 2.1 | < 4.3 |

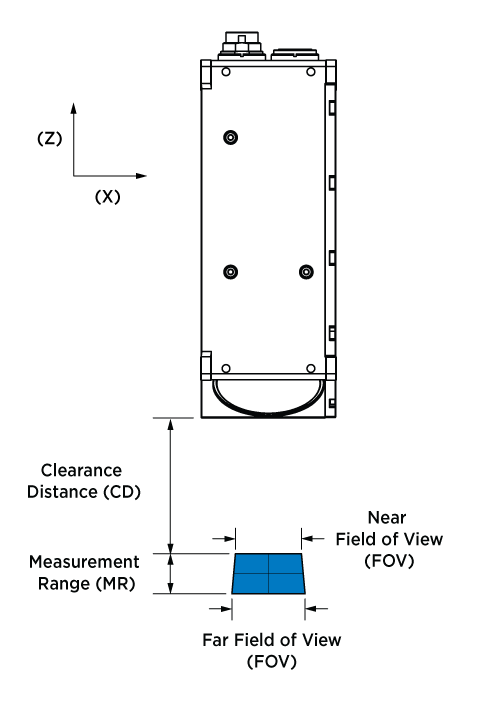

| Clearance Distance (CD) (mm) | 18.15 | 57.5 |
| Repeatability Z (μm) *** | 0.15 | 0.30 |
| Measurement Range (mm) | 5.5 | 17 |
| Field of View (mm) | 13.4 - 14.5 | 28 - 31 |
| Dimensions (mm) | 155.25 x 140.25 x 57.50 | 145.25 x 151.71 x 57.50 |
| Weight (kg) | 1.7 | 1.7 |
Scanning Software: Browser-based GUI and open source SDK for configuration and real-time 3D visualization. Open source SDK, native drivers, and industrial protocols for integration with user applications, third-party image processing applications, robots, and PLCs.
* This specification is achieved with uniform spacing enabled.
** Speed is calculated from default configuration (full field of view and full measurement range).
*** These results are achieved with LMI standard target and optimized sensor configuration.
Factory Communication Protocols:
MECHANICALS
90 Degree Connector / Straight Connector
Choose from a variety of application scenarios, then use an exact duplicate of the
Gocator interface. Perform measurements on pre-recorded data from a variety of
scanned components—all in a web browser-based "virtual sensor" environment. Right
from your desktop. Without the need for a physical sensor.
You can use Emulator via download, or for sample testing of your part.
