FOR SUB-MICRON 3D SURFACE INSPECTION
IN INDUSTRIAL AND LAB-BASED APPLICATIONS
ATTENTION: THIS IS A LEGACY PRODUCT AND NO LONGER AVAILABLE FOR PURCHASE.
3D SURFACE METROLOGY SYSTEMS
Quickly Generate Surface Scans in Stunning Detail​
With MikroCAD, you can acquire critical sub-micron surface information in a variety of applications–scanning with stunning resolution, analyzing with industry standard measurement tools and reporting with highly effective visualizations.
MikroCAD In-The-Field
Cutting Tools Edge Measurement Application
ZOLLER uses MikroCAD in its pomSkpGo system to generate sub-micron level 3D cutting tool edge scans in just seconds, capturing full X-Y-Z point clouds of edge geometry using structured light.Â

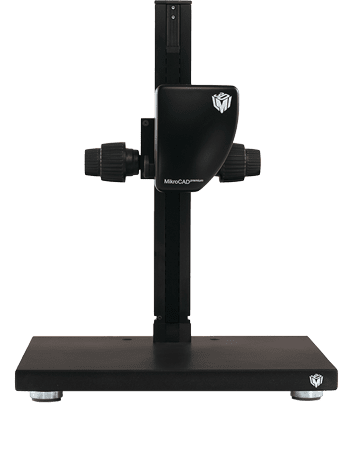

MikroCAD - The Most Cost Effective 3D Microscope
Measures shiny, reflective and steep edges
MikroCAD delivers sub-micron accuracy and repeatability on a variety of challenging scan surfaces such as shiny, reflective and steep edges, in contrast to confocal solutions that are unable to such angled geometries.
With MikroCAD 3D Surface Metrology you can: Â Â Â Â Â
- Measure roughness and surface structure of shiny, hard, soft and deformable objects. (MikroCAD is ideal for characterizing manufactured materials made from metals, paper, rubber, etc.)
- Measure evenness/flatness on large areas
- Measure wear
- Improve fiber-level manufacturing processes
- Analyze edges of tools such as gears, cutting tools, etc.
- Reverse-engineer functional surfaces
MikroCAD Software with MountainsMap® Technology
Comprehensive scan, analysis and reporting software
MikroCAD software combines hardware scanner connection, exposure setup, and live video feedback with MountainsMap® 3D analysis, visualization and reporting to deliver a seamless, fluid and highly effective user workflow.
