Semiconductor manufacturing depends on accurate measurement at every stage of production. Manufacturers must verify dimensions, inspect critical features, identify defects, and ensure proper assembly while maintaining high throughput.
As device geometries continue to shrink, traditional inspection methods can struggle to provide the accuracy and repeatability required for modern semiconductor applications. These challenges become even greater when transparent or reflective materials are introduced into the process.
The Challenge of Reflective and Transparent Materials
Many semiconductor products and manufacturing processes rely on materials that are inherently difficult to inspect. Glass wafers, display substrates, optical components, polished surfaces, and advanced packaging materials can create significant challenges for conventional vision systems.
Emerging technologies such as Through Glass Vias (TGVs) introduce additional measurement requirements, demanding precise inspection of features formed within transparent glass substrates.
Common inspection challenges include:
- Reflections that obscure critical features
- Refraction that affects measurement accuracy
- Low contrast between surfaces
- Complex geometries and steep feature angles
- Small defects that are difficult to detect
These factors can reduce inspection reliability and make it more difficult to maintain consistent quality standards.
Purpose-Built for Challenging Semiconductor Applications
The Gocator® 4000 Series addresses these challenges using coaxial line confocal technology, enabling high-resolution 3D measurement of transparent, reflective, and complex surfaces.
Its shadow-free optical design captures detailed surface information on features that can be difficult to measure using traditional inspection approaches. The platform also offers outstanding angular performance, allowing manufacturers to inspect steep features, deep structures, and intricate geometries with confidence.
Powered by onboard GoPxL® software, Gocator 4000 sensors perform measurement, analysis, and inspection directly at the edge—reducing system complexity while enabling faster deployment and real-time decision-making.
The result is more reliable measurement data, improved defect detection, and greater process control across semiconductor production environments.
Semiconductor Applications
The Gocator 4000 Series supports a wide range of semiconductor inspection applications, including:

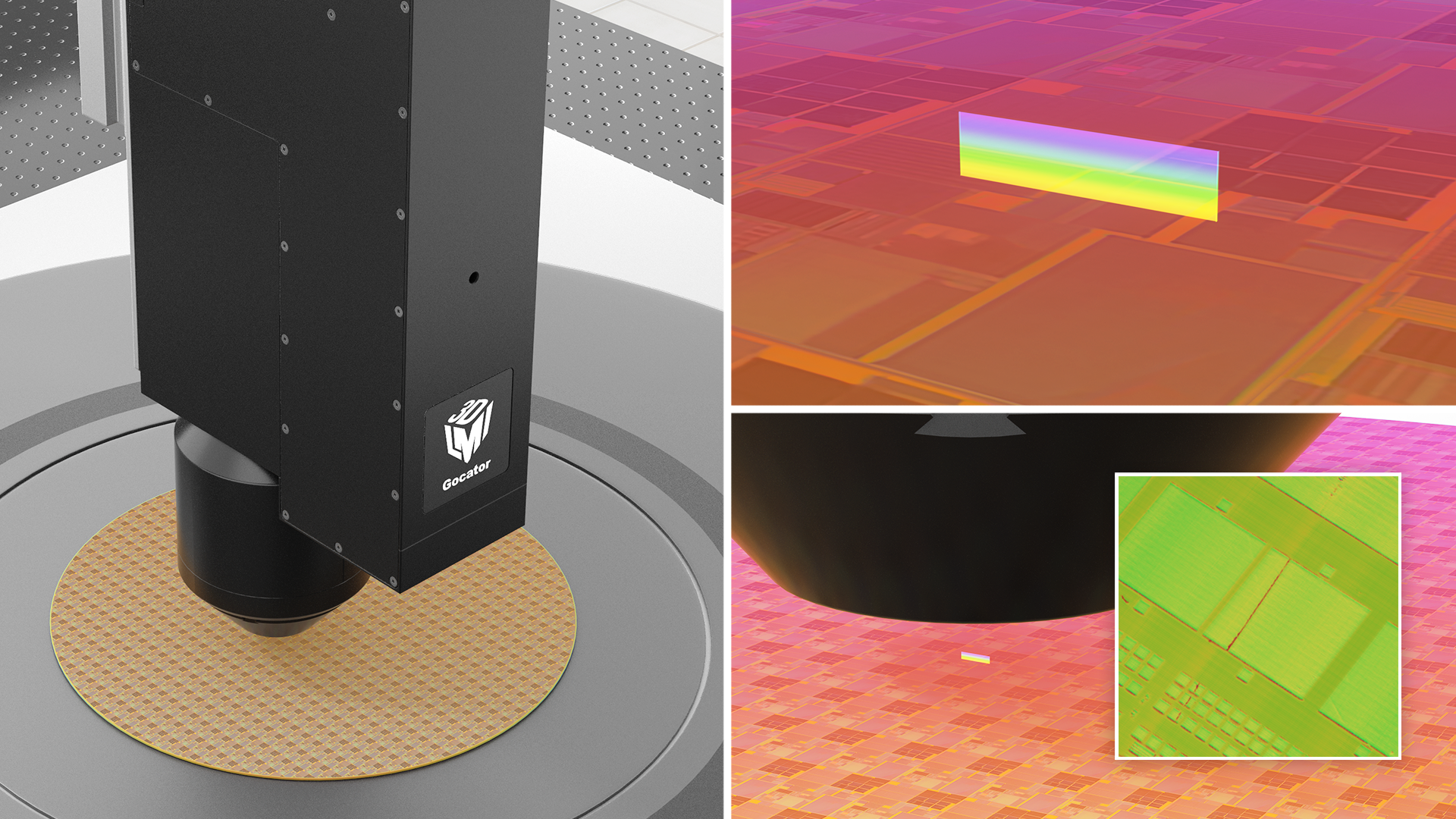

- Wafer inspection
- Semiconductor packaging inspection

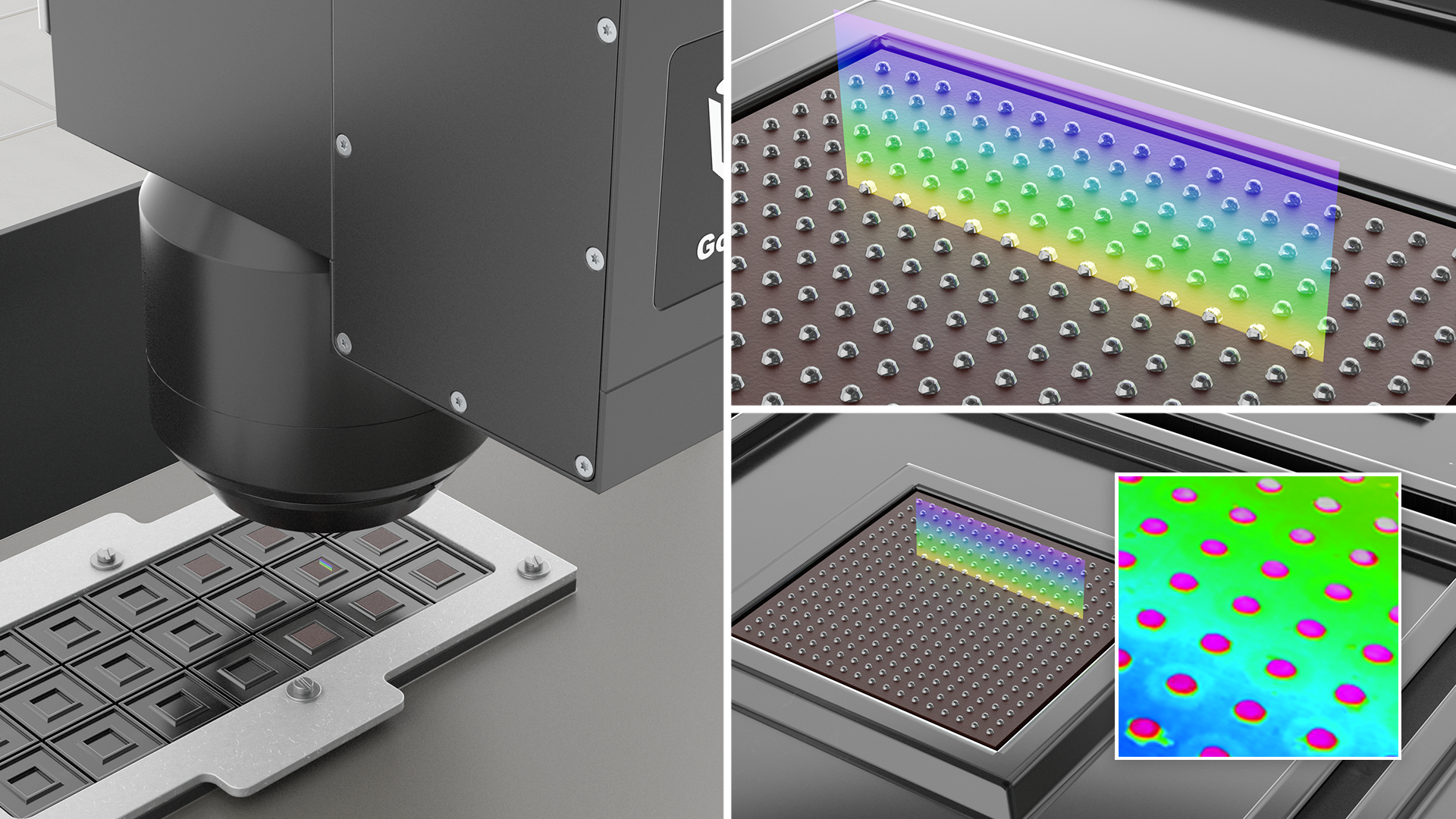

- BGA inspection
- Wire bond inspection
- Precision metrology
- Surface defect detection
- Glass substrate and Through Glass Vias inspection (TGV)
By combining high-resolution 3D measurement with onboard processing and a compact smart sensor design, manufacturers can deploy reliable inline inspection solutions while reducing overall system complexity.
As semiconductor inspection requirements continue to evolve, LMI Technologies is also expanding its coaxial line confocal platform with new ultra-high-resolution Gocator 4000 Series models designed to support increasingly demanding applications.
