Gocator 2430 40 50 Wide FOV Blue Laser 3D Laser Profilers

Scan shiny surfaces at high resolutions
and wider fields of view.

The latest addition to our popular 2400 series, these new BLUE LASER line profilers are designed for precision 3D scanning of shiny materials (e.g. machined-metal surfaces), while offering a range of wide fields of view for applications in EV battery, consumer electronics, rail, and generic factory automation.

The 2400 series also offers several RED LASER models for optimal performance and maximum flexibility in your scanning applications.


DOWNLOAD DATASHEET

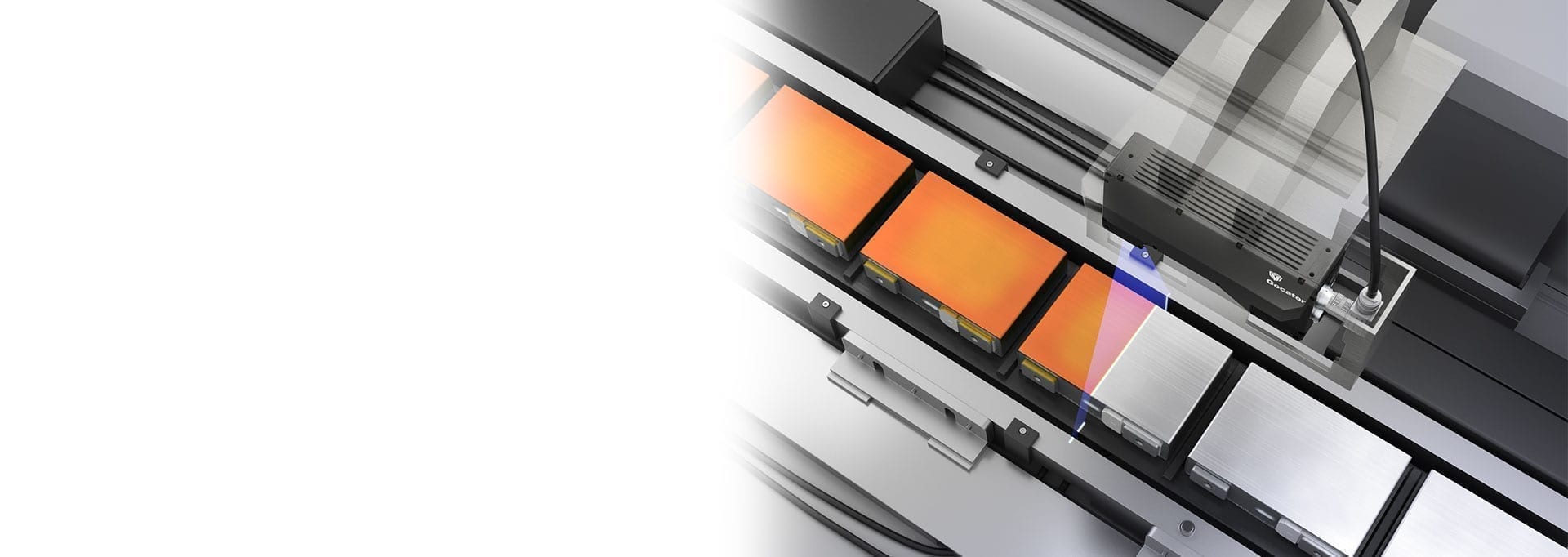

Battery Assembly Inspection

2430 Battery Assembly Inspection


Gocator® 2430 blue laser profiler

Battery Surface Inspection

2450 Battery Surface Inspection


Gocator® 2440 blue laser profiler

Rail Geometry Inspection

2450 Rail Inspection


Gocator® 2450 blue laser profiler

Gocator® 2430 | Blue Laser

High Resolution Model
  • Scan, measure, and control at 5 kHz

  • 47-85 mm field of view

  • X resolution = Down to 37 microns

  • Z repeatability = 0.8 microns

  • Measurement Range (MR) = 80 mm

  • Short wavelength, high-sensitivity blue laser for “cleaner” scan data on specular surfaces

  • Also available in RED LASER for optimal performance and maximum flexibility in your scanning applications

MORE DETAILS DOWNLOAD DATASHEET

Gocator 2430 Blue Laser Profiler



Gocator 2440 Blue Laser Profiler

Gocator® 2440 | Blue Laser

Versatile Model
  • Scan, measure, and control at 5 kHz

  • 90-130 mm field of view

  • X resolution = Down to 90 microns

  • Z repeatability = 1.2 microns

  • Measurement Range (MR) = 210 mm

  • Short wavelength, high-sensitivity blue laser for “cleaner” scan data on specular surfaces

  • Also available in RED LASER for optimal performance and maximum flexibility in your scanning applications

MORE DETAILS DOWNLOAD DATASHEET




Gocator® 2450 | Blue Laser

Widest Field of View Model
  • Scan, measure, and control at 5 kHz

  • 145-425 mm field of view

  • X resolution = Down to 100 microns

  • Z repeatability = 2.0 microns

  • Measurement Range (MR) = 550 mm

  • Short wavelength, high-sensitivity blue laser delivers improved sunlight immunity for high-quality data in outdoor applications such as rail geometry profiling

MORE DETAILS DOWNLOAD DATASHEET

Gocator 2450 blue laser profiler

Designed to Scan Shiny Surfaces.

Dual-Core Controllers
Embedded Processor
For High-speed scanning

In addition to their powerful scanning engines, all three models come with dual core controllers—maximizing onboard processing speed (up to 5 kHz) and minimizing cycle times.

Higher Sensitivity
Optimized Optical Design
For INCreased measurement sensitivity

An optimized optical design minimizes exposure times and allows for accurate and repeatable results on shiny materials.

Class 2 Blue Laser
Class 2 Blue Laser
For high-sensitivity scanning on shiny parts

Blue laser generates "cleaner" data (i.e., less noisy) on shiny/specular targets common in battery and consumer electronics inspection applications.

Wide Field of View
Wide Field of View
For GREATER SCAN COVERAGE WITH FEWER SENSORS

Gocator 2430/40/50 sensors offer a range of wide fields of view to maximize your scan coverage and minimize the number of sensors you need in your inspection system.

Explore Blue Laser Profiling for EV Battery Inspection

Find out more about applications using 2430/40/50 blue laser profilers for 3D scanning and inspection in EV battery manufacturing.

DOWNLOAD BROCHURE

Gocator 2430/40/50 Landing Page Battery Brochure

Ask About Gocator® 2430/40/50 Blue Laser Line Profilers

Let's discuss the benefits of wide field of view 3D blue laser profiling for EV battery, consumer electronics, rail, and general factory automation applications.
