Smart 3D Inspection for Auto Parts and Assembly

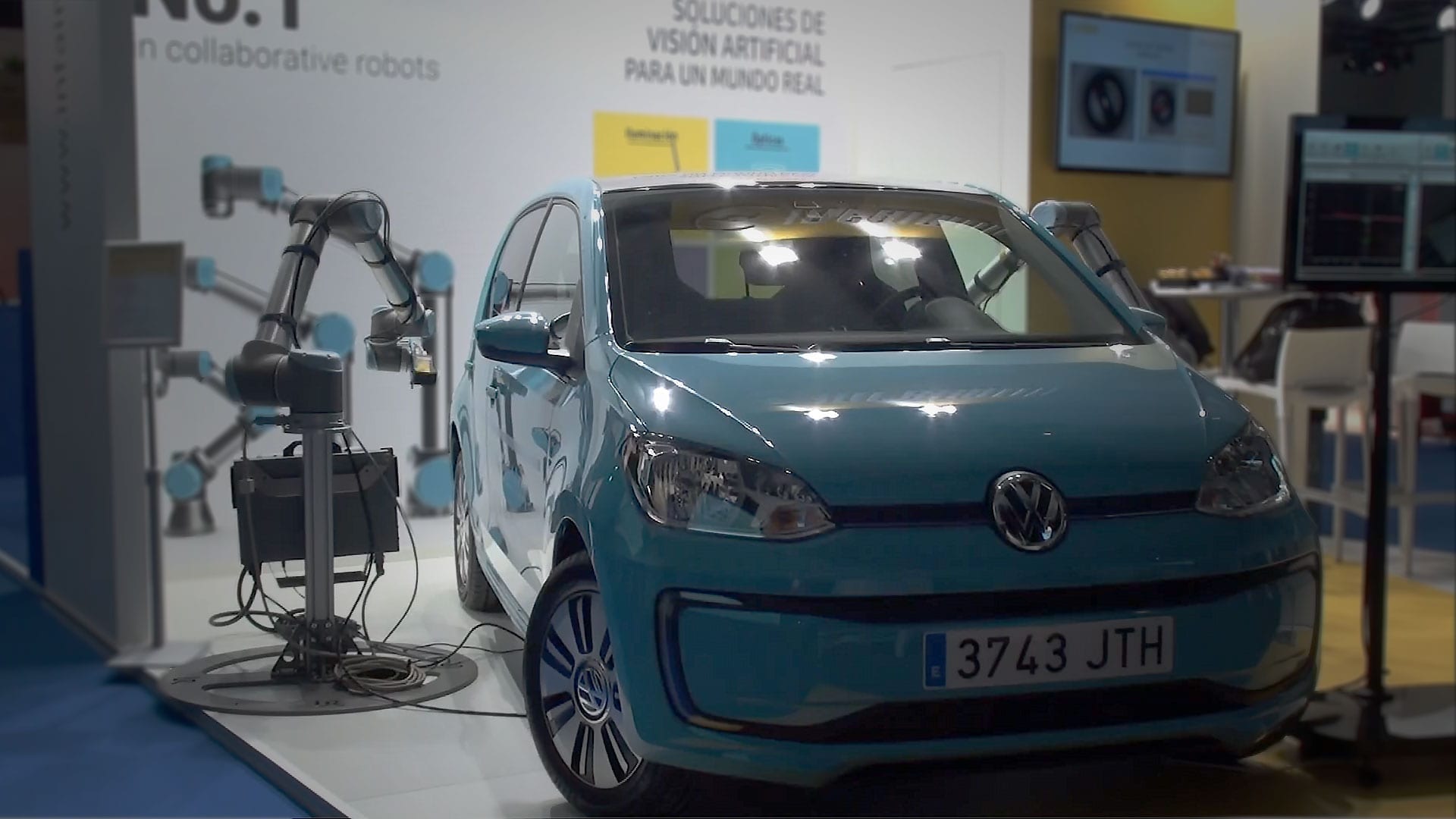

Door Panel Gap and Flush Inspection (Robotic)

Quickly and easily inspect interfacing surfaces.

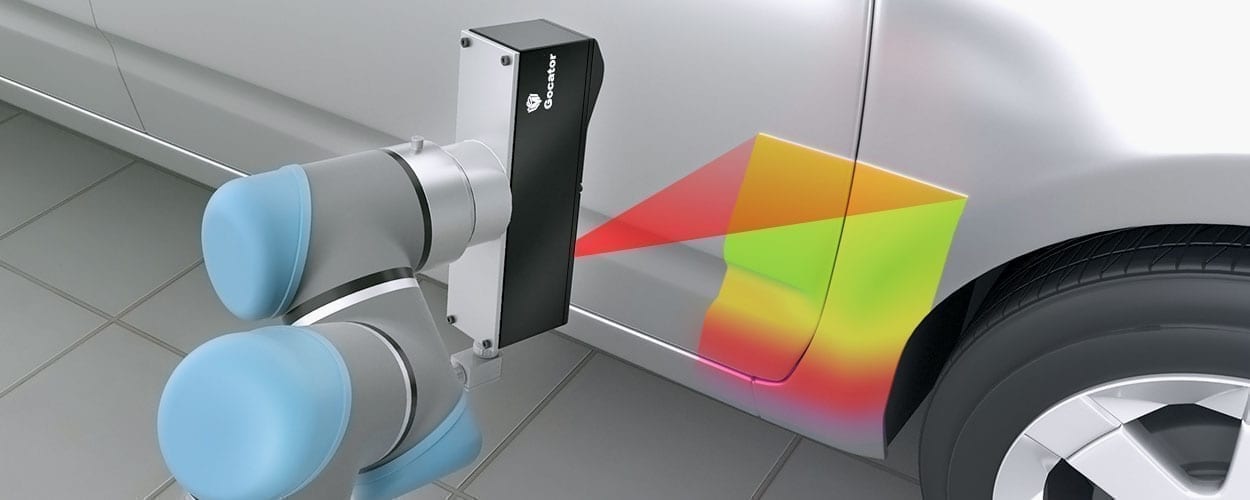

Door Panel Gap & Flush Inspection (Robotic)

A robot-mounted Gocator® sensor detects and inspects finished assembly features (such as panel gap & flush tolerances).

Flexible Robotic Inspection

This tool comes onboard Gocator® and automatically measures the gap and flushness between two surface edges.

Built-In Gap & Flush Tool

Gocator® 2340

LEARN MORE

Workhorse 3D laser line profiler for a wide range of inspection applications.

READ ARTICLE

Automate assembly applications with smart 3D robot vision.

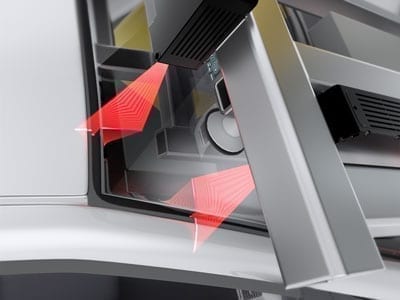

Windshield Insertion (Robotic)

Gocator® sensors are easily mounted to robot arms, giving the robot the ability to pick up and guide parts to critical locations for insertion (e.g., doors, roofs, and windshields).

Robot Vision Guidance

Technicians use Gocator’s built-in Edge tool to determine the 3D location of critical points on the windshield aperture.

Built-in Edge Tool

Gocator® 2400 Series

LEARN MORE

Ultra-high resolution 3D sensors for advanced applications.

Leverage onboard scan, measure, and control for 100% inspection of manufactured parts.

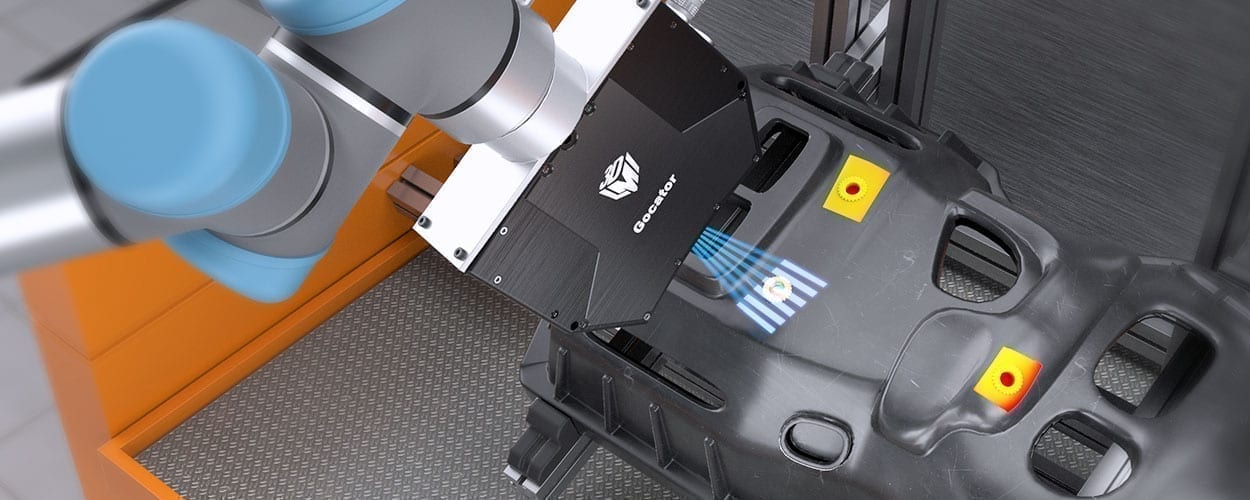

Automotive Part Inspection

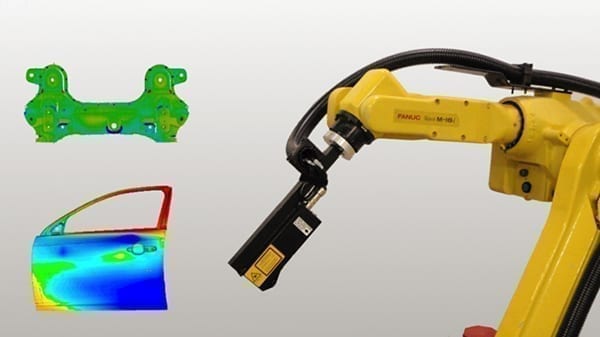

Gocator® sensors collect high-resolution 3D data from the target surface for robust quality inspection.

Precision 3D Data

Only 3D gives you the shape data (height, volume) required to inspect a wide range of automotive parts such as plastic welds, sideframes, brake rotors and more.

The 3D Advantage

LEARN MORE

Gocator® 3500

High resolution 3D snapshot sensors for robust quality inspection.

Gocator® provides robotic systems with complex 6DoF vision guidance for high-accuracy and high-speed automated assembly.

6DoF Capability

Achieve robust inspection in fixed measurement and high-tolerance applications.

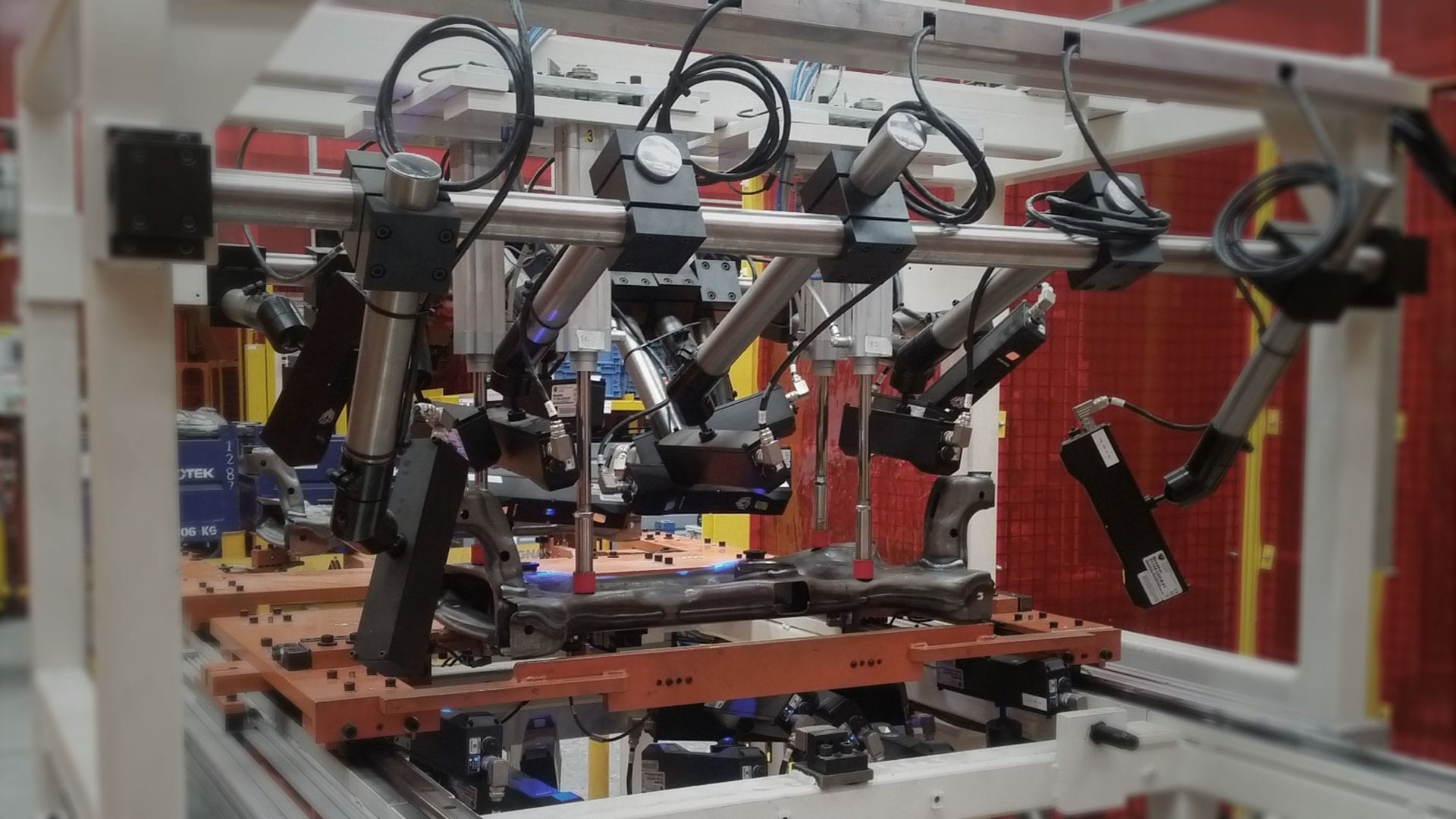

Underbody Inspection

Fixed Gocator® setups can be used to measure difficult-to-scan features that robotic solutions can’t reach, such as occluded studs and holes in body-in-white and underbody inspection.

Fixed Measurement

Complete 3D Imaging

Gocator® snapshot sensors generate a complete, high-density 3D model of the scan target in a single scan trigger.

Wide FOV snapshot sensor for robust quality inspection in fixed measurement setups.

LEARN MORE

Gocator® 3210

Fast, accurate, non-contact 3D inspection of internal combustion engines.

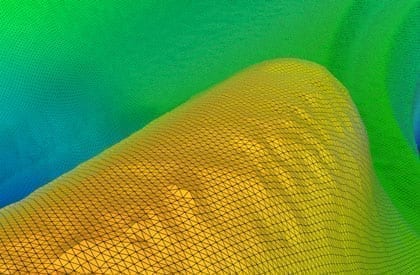

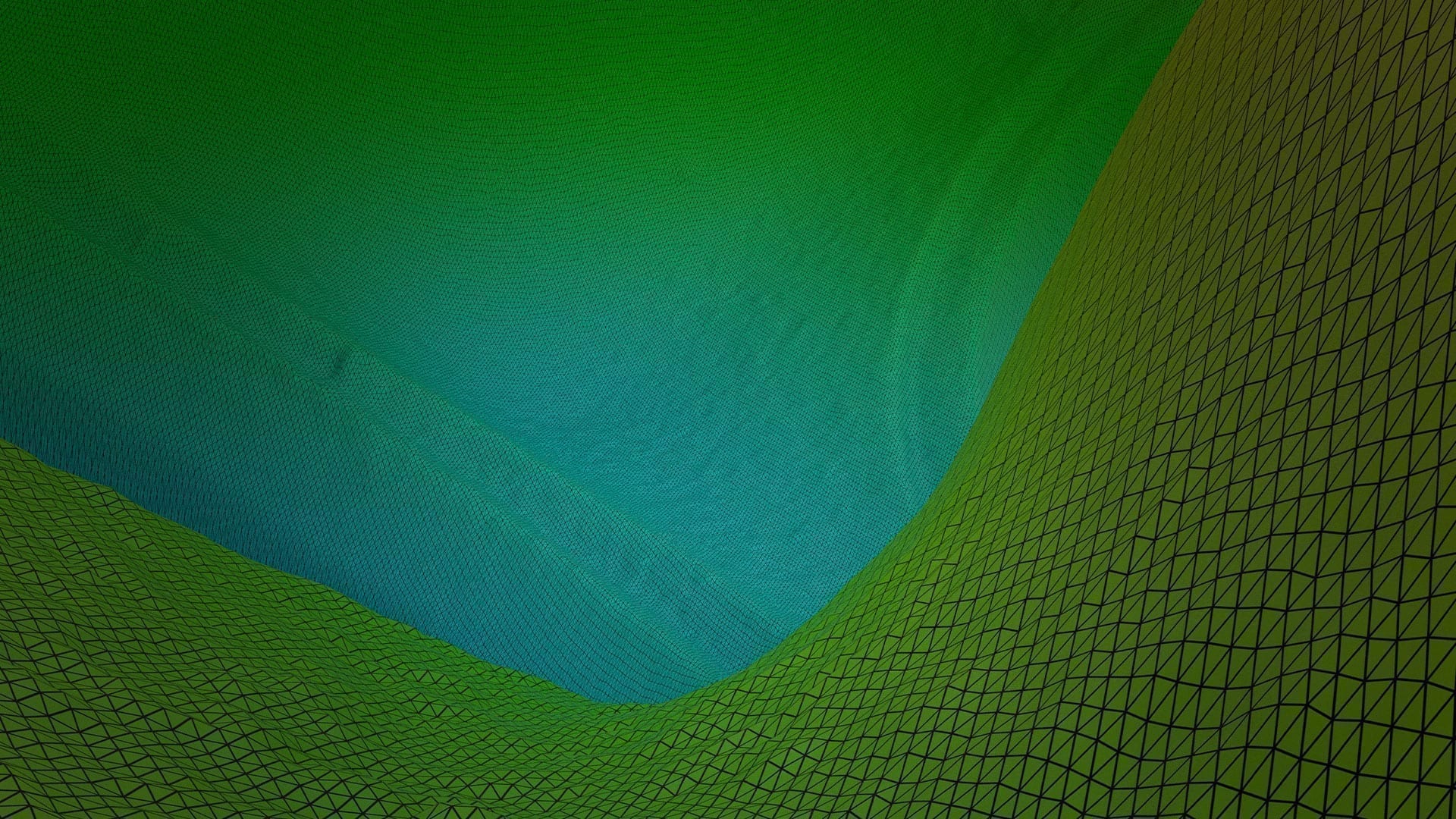

Engine Cylinder/Piston Bowl Volume Gauging

Gocator® Volume Checker scans and measures volumes at an accuracy of ± 0.04 cm3 in a cycle time of less than 5 seconds. Traditional methods can take up to 4-5 minutes to complete.

High Accuracy Measurement

Customization with GDK

For tier 1 and tier 2 suppliers, Gocator® Development Kit (GDK) supports the development and embedding of custom measurement tools to satisfy any application-specific measurement requirement.

Gocator 3210 w/ built-in volume measurement tools

DOWNLOAD DATASHEET

Gocator®
Volume Checker

DOWNLOAD AUTOMOTIVE BROCHURE

Gocator® 3D line profilers and snapshot sensors deliver leading-edge, high-performance 3D scanning and inspection solutions for the many different types of stations in the automotive manufacturing process, including tooling, framing, assembly, and inspection.

Smart 3D Machine Vision for the Automotive Industry

AUTOMOTIVE

Learn More DOWNLOAD DATASHEET

This sensor leverages an ultra-wide field of view and large measurement range to scan large targets such as automotive body frames.
