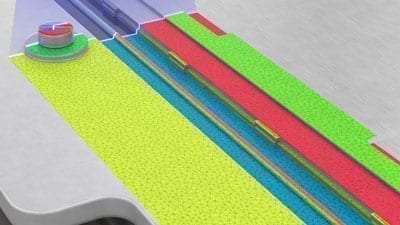

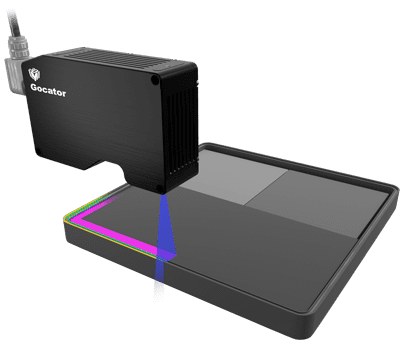

A Gocator® laser line profiler scans and inspects the glue bead application for correct volume and uniformity.
Glue Bead Inspection

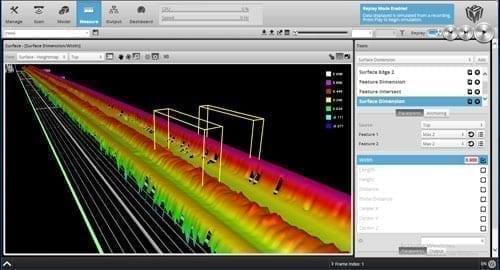

Perform width, height, offset, and continuity inspection at defined points along the glue bead path and return global measurements and statistics.
Built-in Surface Track Tool
Only 3D provides the shape data you need to measure the height/volume of the glue bead. 2D cannot perform this application.
The 3D Advantage
Gocator® 2520
LEARN MORE
High-speed, ultra compact 3D laser line profilers.
Gocator® scans and measures the flushness and offset between the cell phone display glass (specular material) and plastic housing (diffuse material).
Cell Phone Display Glass Assembly Inspection
This native tool automatically carries out flushness and offset measurements of the interface between the edges of two surfaces to ensure tight assembly tolerances are met.
Built-In Panel tool
Only 3D provides the shape data you need to measure correct flushness and offset.
The 3D Advantage
Gocator® 2512
LEARN MORE
3D line profiler for scanning glass and other specular surfaces.
Gocator® 2512 uses specialized laser projection technology that can handle a wider range of surface angles, material types, and surface colors.
Specialized Laser Projection Technology

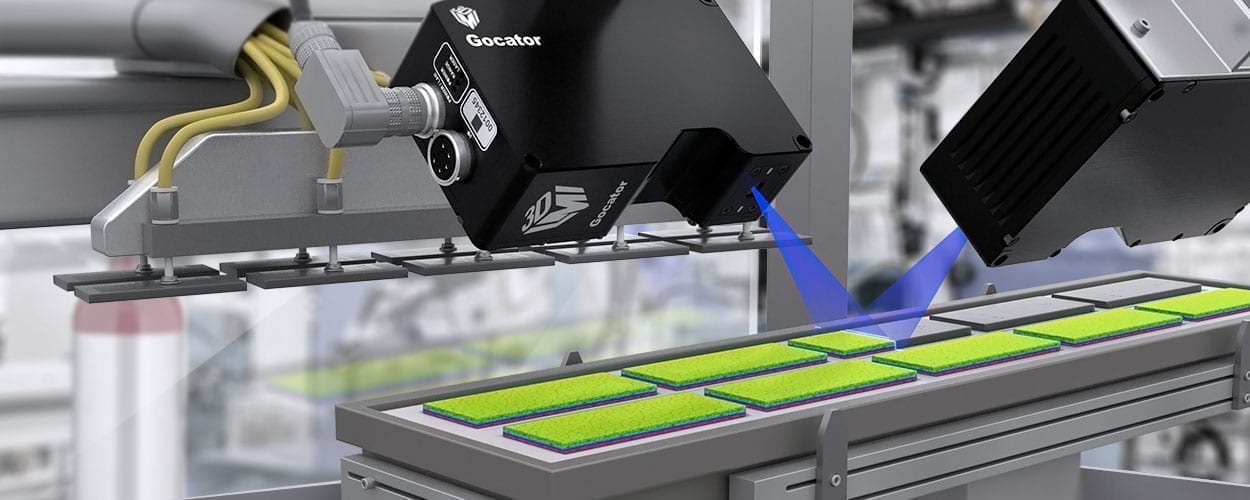

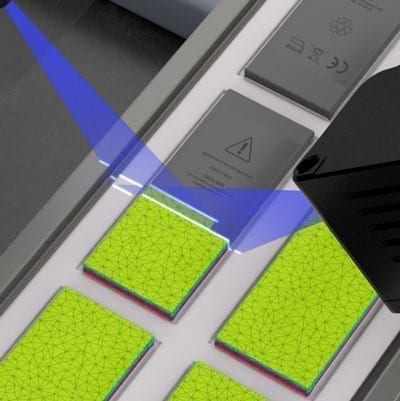

A Gocator® dual sensor network scans the entire battery surface to verify surface quality (flatness, no defects).
Cell Phone Battery Surface Inspection
Short-wavelength blue light generates higher-quality scan data (i.e., less noisy) on highly specular surfaces such as polished metal.
Blue Laser
Only 3D gives you the shape data required to inspect battery surface features and dimensions for defects such as bulges, fissures, etc.
The 3D Advantage
LEARN MORE
Gocator® 2420
Ultra-high resolution 3D sensors for advanced applications.

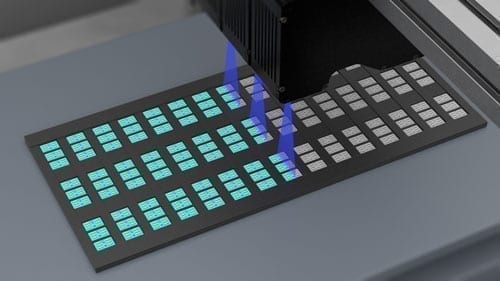

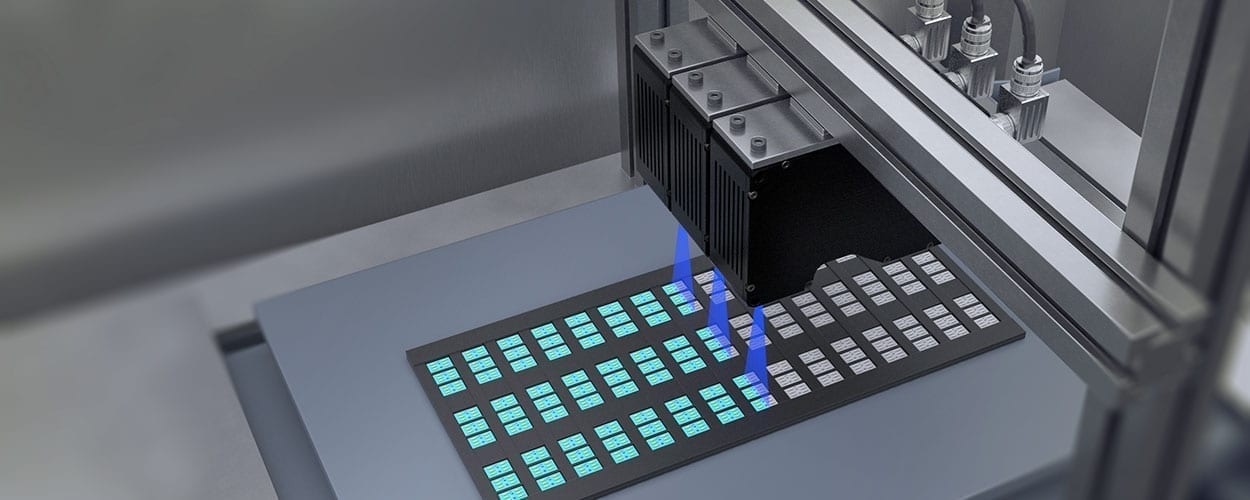

A Gocator® multi-sensor network inspects connector pins for presence/absence, position, and correct height and coplanarity.
Nano-SIM Connector Pin Inspection

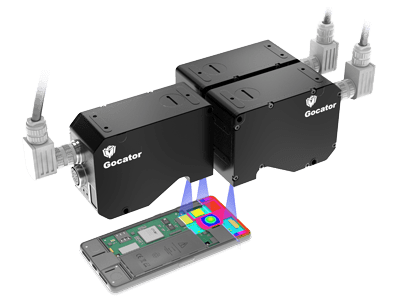

This unique capability allows you to generate a single 3D scan from multiple synchronized sensors, to which you can apply global measurements and downstream control decisions.
Easy Multi-Sensor Networking
The 3D Advantage
3D provides the high-resolution height data you need to inspect small parts such as nano-SIM connector pins.
Ultra-high resolution 3D sensors for advanced applications.
LEARN MORE
Gocator® 2420
Achieve faster inspection cycle times with Gocator® and GoMax® Smart Vision Accelerator.
Cell Phone Housing Inspection
Leverage massive GPU-driven compute power to take over a portion of the sensor's data processing and speed up inspection.
Vision Acceleration
The Smart 3D Advantage
Offloading data processing to a dedicated hardware device allows for faster 3D point cloud generation and measurement.
Plug-and-play sensor acceleration for faster cycle times.
LEARN MORE
GoMax®
DOWNLOAD CE BROCHURE
Gocator® 3D smart sensors provide a complete solution for high-speed, high-precision 3D scanning across a wide range of consumer electronics (CE) manufacturing applications including glass and glue bead inspection.
100% inspection of small parts and assemblies
Smart 3D Machine Vision for the Consumer Electronics (CE) Industry
CONSUMER ELECTRONICS
Download Factsheet
Gocator® 2510 and Gocator® 2520 provide full 3D inspection from onboard the sensor head and feature an optimized design for small parts inspection—with a focus on consumer electronics (CE) applications.
Recommended Solution for Consumer Electronics
Gocator® 2500 Series - Engineered for High-Speed 3D Inspection
Download Industry Application
The inspection of adhesives and sealants (typically applied as beads) is a critical quality control step in the assembly of electronics. To meet this challenge, Gocator all-in-one 3D smart sensors offer a complete solution to ensure correct bead volume and location without overflow or breaks.
Industry Application
Adhesive and Sealant Inspection
Learn more
These powerful sensors feature a dual-axis design that delivers simultaneous generation of 3D topography, 3D tomography, and 2D intensity data—allowing them to scan virtually any material type including the individual layers in transparent cell phone glass.
Recommended Solution for Consumer Electronics
The Industry's First Smart 3D Line Confocal Sensors
Download Case Study
Gocator 2420 is used to take measurements on nano-SIM connectors in an inline inspection process. There are 14 locations to be inspected on the SIM connector— seven small pins and seven large pins.
Case Study
Nano-SIM Connector Inspection
