The Industry’s First Smart 3D Line Confocal Sensors
The Gocator® 5500 series adds patented line confocal imaging (LCI) technology to the Gocator® family of trusted laser and structured light 3D smart sensors, making them the first and only line confocal sensors that include a web-based interface with built-in measurement tools, I/O connectivity, and multi-layer profiling support accelerated using a PC.
These powerful sensors feature a dual-axis design that delivers simultaneous generation of 3D topography, 3D tomography, and 2D intensity data—allowing them to scan virtually any material type.
Surface Roughness Measurement
Gocator 5512 for brakepad surface inspection
Semiconductor Manufacturing
Gocator 5504 for wafer dimensionining, sorting, and surface defect detection
Multi-Layer Display Glass Inspection
Gocator 5512 for simultaneous inspection of multiple surfaces

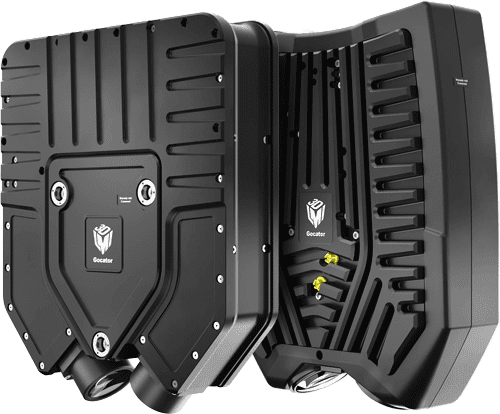

Gocator® 5500 Series
The Industry’s First Smart 3D Line Confocal Sensors
- Simultaneous generation of multiple profiles from multi-layer structures
- Generates 1792 data points per profile
- Fast scan rates (Over 16 kHz w/ PC acceleration)
- High X resolution, sub-micron Z precision
- Handles wide variety of material types
- Dual-axis optical design provides higher signal quality
- Runs next-generation onboard measurement and inspection software
DUAL-AXIS DESIGN. UNPARALLELED PERFORMANCE.
3D Tomography, 3D Topography, and 2D Intensity DataFOR Measurement OF VIRTUALLY ANY MATERIAL TYPE
Gocator® 5500 sensors capture 3D tomography data that enables the measurement and inspection of multi-layered materials such as bonded glass. They also simultaneously generate 3D topography for geometric dimensioning and surface and material layer defect detection, and 2D intensity data for simple object and defect detection.
High-Speed ScanningFOR INLINE PRODUCTION APPLICATIONS
Gocator® 5500 sensors feature a custom high-speed imager and high-performance electronics to deliver metrology-grade inspection at over 16 kHz with PC acceleration.
High-Resolution ImagingFOR Metrology-Grade INSPECTION
Gocator® 5500 sensors can achieve X resolutions up to 2.5 microns and Z repeatability up to 0.05 microns.
On-Sensor IIOT Vision SoftwareFOR Embedded Measurement Capability
Gocator® 5500 series sensors are built on LMI’s leading smart sensor design architecture that includes an easy-to-use web-based interface with built-in measurement tools, I/O connectivity, and multi-layer profiling support accelerated using a PC.
Discover the Power of Line Confocal Imaging
Dive deeper into the mechanical design and unique performance capabilities of patented line confocal imaging for automated inspection.
LET’S TALK ABOUT THE BENEFITS OF SMART LINE CONFOCAL IMAGING FOR YOUR PRODUCTION LINE.
Get in touch with an LMI expert to discuss the many benefits of smart line confocal imaging for industrial measurement and inspection.
