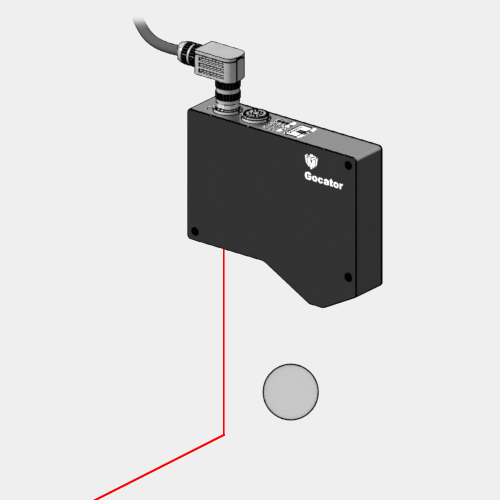

SCAN GOCATOR® IS POWERFUL 3D SCANNING TECHNOLOGY Scroll Down 3D BASED ON YOUR NEEDS Gocator® offers three different 3D scanning technologies to meet your specific application requirements—laser point profile, laser line profile, and snapshot. Point profile scanning uses a focused laser point to scan at 32 kHz along the direction of part travel, or inspects displacement in a fast moving inline process. This scanning type is ideal for measuring object dimensions such as thickness, height and surface roughness. POINT PROFILE SCANNING GOCATOR G1 POINT PROFILE SENSORS
WATCH FULL VIDEO Line profile scanning uses a projected laser line to perform high-resolution geometry, surface and volumetric measurements at inline production speed. LINE PROFILE SCANNING GOCATOR G2 LINE PROFILE SENSORS
WATCH FULL VIDEO Snapshot scanning combines structured light with built-in 3D measurement tools for specific object features, and is ideal for inline inspection of parts with start/stop motion such as flexible robotic inspection and pick-and-place. SNAPSHOT SCANNING GOCATOR G3 SNAPSHOT SCANNING SENSORS
WATCH FULL VIDEO The high-definition visualizer can handle millions of 3D data points efficiently across all devices including mobile. HD 3D DATA VISUALIZER
WATCH FULL VIDEO High-Definition 3D Data Visualizer 2D + 3D Capability Gocator combines 3D with 2D technology for a more robust inspection system.

INTENSITY OUTPUT (Acquire Intensity)

In Gocator, an 8-bit intensity value is output for each range value along the laser line or for structured light. This allows you to use one sensor to perform both 2D and 3D measurements. Gocator supports expanded built-in support to assign many buddy sensors in a flexible layout and create a single, dense 3D point cloud ready for measurement. Watch the video to see how it works! Multi-sensor Networking
for Maximum Scan Coverage MULTI-SENSOR NETWORKING FOR MAX SCAN COVERAGE
WATCH FULL VIDEO KEEP EXPLORING ... There's much more to learn about Gocator® firmware and its smart capabilities. Simply click on one of the sections below to continue your journey through the mind of the sensor. Measure Built-in 3D measurement tools make your work easier and more accurate. Control See the results of onboard pass/fail decision-making and control logic. FIRMWARE Download the current firmware version and explore the latest capabilities. GO > GO > GO > Scan page bckg solid 1 G1 scan animation G2 scan animation 0 G3 scan animation 0 G1 scan animation G2 scan animation 0 G3 scan animation 0
