Gocator 3520 - HIgh Resolution Extended FOV 3D Snapshot Sensor

High XY resolutions. Larger scan volume.

Gocator 3520 is the latest addition to our 5-megapixel stereo snapshot series—featuring an extended field of view and the same high XY resolutions and short exposure times required to achieve fast, metrology-grade scanning and inspection.

The 3520 sensor delivers smart 3D snapshot scanning and inspection into many new applications including robot-driven quality control and stop-and-go part verification.

DOWNLOAD DATASHEET

Piston Bowl Gauging

Gocator 3520 Piston Bowl Gauging


Gocator® 3520

Powertrain Inspection

Gocator 3520 Powertrain Inspection


Gocator® 3520

Bin Picking (Pick and Place)

Gocator 3520 Bin Picking


Gocator® 3520

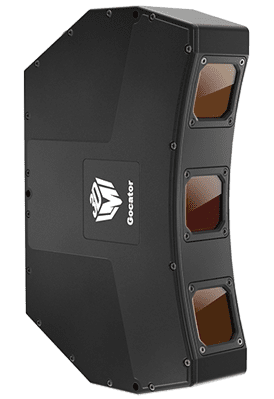

Gocator 3520

High XY Resolutions. Larger Scan Volume.
  • Scan, measure, and control at 3 Hz with PC or GoMax accelerator

  • 179 x 115 - 282 x 175 mm field of view (FOV)

  • XY resolution = 0.074 - 0.121 mm

  • Z repeatability = 4.6 microns

  • Measurement Range (MR) = 150 mm

  • Clearance Distance (CD) = 203 mm

  • Combination of high resolution, larger FOV, and brighter projection output ideal for 3D inspection in robot-driven quality control and stop/go part verification


MORE DETAILS DOWNLOAD DATASHEET

Gocator 3520 Smart 3D Snapshot Sensor

Metrology-Grade Performance. Inline Inspection Ready.

3520 Robot Integration
Easy Robot Integration
FOR FLEXIBLE INSPECTION AND PICK-AND-PLACE APPLICATIONS

Easy robot integration allows you to immediately install the sensor on a robot arm and perform hand-to-eye calibration. Larger fields of view and shorter clearance distances allow users to minimize the travel distances of the robot arm, increasing overall inspection coverage as a result. This design also offers a greater range of robot movement to support various scan angles.

3520 Faster Data Processing



Built-In Hardware Acceleration
For Faster Data Processing

In addition to their powerful scanning engines, every Gocator high-resolution structured light 3D snapshot sensor comes with next-generation dual-core controllers, which significantly increase onboard processing speed to match inline production speed.

3520 Stereo Camera



Stereo Camera Design
For Minimizing Occlusions

The sensor’s 5-megapixel stereo camera design maximizes data capture by triangulating three ways to minimize occlusion.

3520 Industrial Projector
High Intensity LED Projector
FOR SHORT EXPOSURE TIMES AND FAST SCAN RATES

Gocator 3520’s high-intensity LED projector delivers the short exposure times and fast scan rates required to generate high quality scans with minimal motion blur caused by target vibration or movement jitter.

Explore Gocator® 3520 in this exclusive snapshot sensor technology factsheet.

Learn why 3D snapshot sensors are the preferred solution for inspection applications where the target uses start/stop motion, and how these sensors stack up against white light interferometers and confocal microscopes.

DOWNLOAD FACTSHEET

Gocator 3D Snapshot Sensor Factsheet

Ask About Gocator® 3520 Snapshot Sensors

Let's discuss the benefits of stereo structured light snapshot scanning for inspection applications in robot-driven quality control and stop/go motion part verification.
